| Drum/Transfer Pump |
|
| Polycraft 2:1 air driven transfer pump is backed by years of proven design and quality workmanship. Reliable chemical pumping up to 5.5 gpm (21 liter/min), and up to 11 gpm with intermittent duty operation (42 liter/min), is achieved through a divorced design piston pump. Total separation of the air motor and the pumping mechanism minimizes maintenance and totally eliminates the need for lubrication. Superior engineering and design enables the pump to dispense an equal volume of material on both the up and down pump strokes. |
|
 |

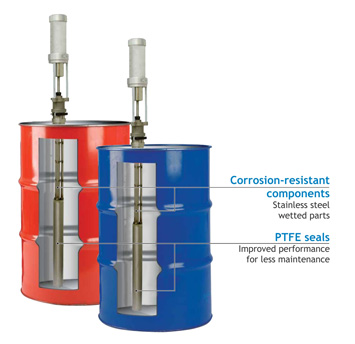

Drum/Transfer Pump |
|
|
| |
Polycraft 2:1 Air Motor
Teflon Packings and O-rings
All Stainless Steel Wetted Parts
Ground Lug For use with flammable materials |
|
| |
| |
Benefits |
Features |
|
| |
- Low Cost
- Labour Savings
- Major Waste Reduction
- No Maintenance
|
- 20 Lit/Min. Output [Cont. Duty]
- 2:1 Pressure Ratio
- 100 Psi Air Pressure
|
|
| * we also Offer 5:1 Ration Pump for High Discharge Pressure |
|
|
|
|
| |
|
Transfer Pump Accessories
Pressure Regulator:
Regulates inlet air pressure to Transfer Pumps from 0-100 psi (7 bar). |
|
Transfer Pump Air Hose Assembly:
Capable to supply air to both transfer pumps via quick disconnect fittings. |
|
Additional Bung Adopter:
An additional bung adapter can be fixed into a second material drum for minimal interruption of operation during drum Change-over. |
|
Material Supply Hose:
3/4" x 10' supply hose connects transfer pump to metering unit. Other size hoses are also available. |
|
KEY FLUIDS
Isocyanate (M.D.I) |
Mesa Oil |
Polyol |
Solvent |
| Catalysts |
Paints & Coatings |
| Adhesives |
Acids |
| Resins |
Kerosene |
| Polyurea |
Hydraulic Oil |
| N,- Dimethyl Formamide (D.M.F) |
Break Oil |
| Dioctyl Phthalate (D.O.P) |
Corrosive and Abrasive fluids |
| Methylene Dichoride (M.D.C) |
Lubricants |
|
 |
| Specifications |
|
Pressure Ratio
A:B |
Output
(Cont. Duty) |
Stroke
Length |
Air Pressure |
Air Inlet |
Fluid Output |
Air Consumption |
Wetted Parts |
2:1 |
20 Lit/Min |
4 in |
100 psi |
1/4 BSP [F] |
3/4 BSP [F] |
2.0 cfm per gallon-
pumped @ 100 psi |
Stainless Steel,
Teflon, Nylon |
|
| |
| |
High Pressure Unit
