| Cold Room Panel Line |
|
 |
| |
| Hot Press Line |
|
Loading Conveyor |
Driving conveyor |
Pre Heating |
PU foaming at both side |
High pressure PU foaming machine |
Curing at Double belt conveyot |
Exit conveyor |
Stacker |
|
| |
| Advantages of PUR Sandwich Panel |
|
- Thermal Insulation
- Fireproofing
(PIR Foam)
- Water & Moisture-Proofing
- Sound insulation
- Rigidity
- Easy
Application
- Saving Cost
- Various
Architectural Styles
- Beautiful
Appearance
|
| |
| Technical Data |
|
| Raw material |
color coated steel coil |
| Line speed |
1~8m/Min |
| Pass line |
approx fl+1,200mm |
| Panel length |
2~12m |
| Panel width |

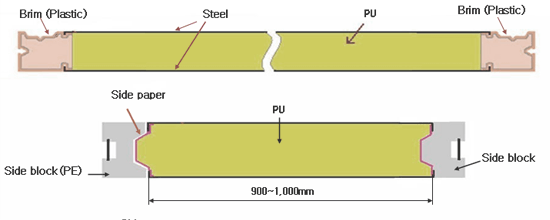

900 ~ 1,000mm |
| Panel thickness |
50~150mm |
| PU foaming machine |
High pressure machine |
| PU injection |
By two mixhead |
| Foam system |
PUR or PIR Rigid Foam |
| Foam density |
approx 35~45 kg/m3 |
| Length of double conveyor |
20m or 30m |
| Inner height or building |
6m |
| Temperature of factory |
18 +-2 |
| Temperature of Tank |
20 ~ 23°C |
| Factory length |
70~80m |
| Factory width |
15 m |
| Electric consumption |
200kw |
| Required man power |
6~7 men |
|
| |
| Yearly Production Capacity |
|
| Production speed |
3~4m/min (100mm T standard) |
| 1 hour production |
180 m2 (Production speed
3m/min) |
| 1 day production |
1,440 m2 |
| 1 year production (300working
days) |
432,000 m2 |
| Efficiency 80% |
350,000 m2 |
|
| |
Yearly production capacity
(8hr
working per day)
approx 350,000 m2!! |
| |
